Aldr100A Multi-Function Hospital Electric Obstetric Delivery Birthing Gynecology Examination Bed
Aldr100A Multi-Function Hospital Electric Obstetric Delivery Birthing Gynecology Examination Bed
Aldr100A Multi-Function Hospital Electric Obstetric Delivery Birthing Gynecology Examination Bed
Aldr100A Multi-Function Hospital Electric Obstetric Delivery Birthing Gynecology Examination Bed
Aldr100A Multi-Function Hospital Electric Obstetric Delivery Birthing Gynecology Examination Bed
1 / 5
Aldr100A Multi-Function Hospital Electric Obstetric Delivery Birthing Gynecology Examination Bed
Aldr100A Multi-Function Hospital Electric Obstetric Delivery Birthing Gynecology Examination Bed
Aldr100A Multi-Function Hospital Electric Obstetric Delivery Birthing Gynecology Examination Bed
Aldr100A Multi-Function Hospital Electric Obstetric Delivery Birthing Gynecology Examination Bed
Aldr100A Multi-Function Hospital Electric Obstetric Delivery Birthing Gynecology Examination Bed

Aldr100A Multi-Function Hospital Electric Obstetric Delivery Birthing Gynecology Examination Bed

Customization: Available
Type: Operating Table
Kind: Gynaecology
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
ALDR100A
Certification
CE, FDA
Group
Adult
Motor Brand
Linak Brand
Feature
Luxurious Delivery Bed
Purpose
For all stages of delivering
OEM
Available
Capacity
500 Sets/Month
HS Code
94029000
Origin
China
★

Product Overview

ALDR100A Multi-Function Hospital Electric Obstetric Delivery Birthing Gynecology Examination Bed

Multi-Function Hospital Electric Obstetric Delivery Bed

The electric delivery bed is designed with a focus on the emotional well-being of both mothers and infants. Featuring a convenient and simplified operation method, it significantly reduces the workload and pressure on medical operators. The bed supports various labor positions including supine, sitting, side lying, and kneeling to provide maximum comfort. It features a telescopic leg frame and adjustable electric height, while a mobile hidden assist desk offers an expanded workspace for nursing staff.

✔

Key Features

1
Imitation wood grain headboard to create a calming childbirth environment.
2
Castor central control system for easy locking or mobility.
3
Leg support and hidden handles on both sides for angle and position adjustment.
4
Electric control for height adjustment, Trendelenburg, reverse Trendelenburg, and back section folding.
5
Hidden stainless steel basin designed for easy removal and cleaning.
6
Retractable auxiliary table that can be hidden under the bed frame.
⚙

Technical Specifications

Parameter Details (ALDR100A)
Overall Length1930mm
Overall Width940mm
Height Range680-980mm
Bed Surface (L*W)1815*780mm
Backrest Max Upward Angle0-75°
Trendelenburg / Reverse Trendelenburg≥45°
Loading Capacity240kg
Power SupplyAC 220V±10%, 50HZ
PackagingWooden Case Size182*108*112cm
Gross Weight (G.W.)312kg
📷

Product Details

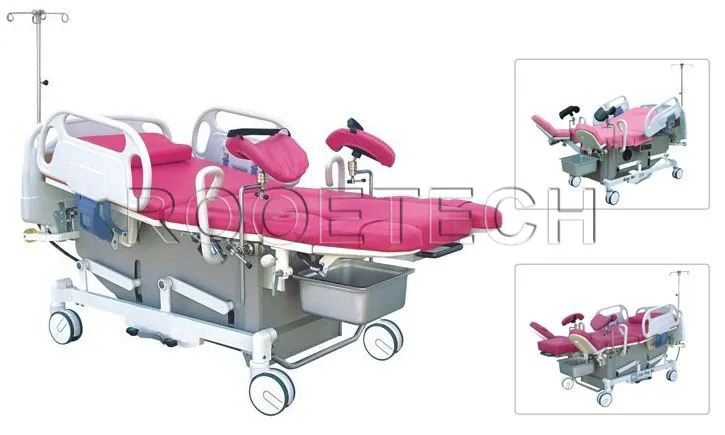

Delivery Bed Details 1

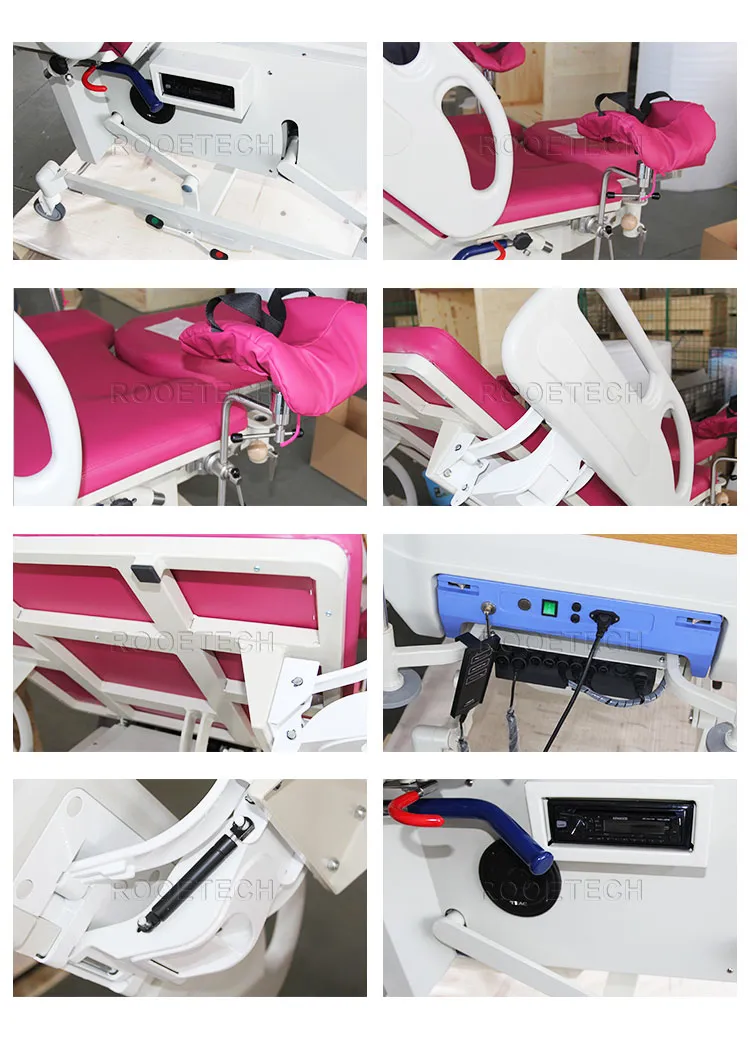

Delivery Bed Details 2
?

Frequently Asked Questions

Q1: Which labor positions are supported by the ALDR100A bed?
A: The bed supports multiple positions including supine, sitting, side lying, and kneeling to ensure comfort for the mother during all stages of delivery.
Q2: Is the bed's movement manual or electric?
A: The ALDR100A is an electric delivery bed. The height, Trendelenburg positions, and back section folding are all electrically controlled via buttons.
Q3: What is the maximum weight capacity?
A: The bed is built for heavy-duty medical use with a maximum loading capacity of 240kg.
Q4: Does it come with a motor warranty or a specific brand?
A: The bed is equipped with the high-quality Linak brand motor, ensuring reliable and smooth electric adjustments.
Q5: How is the bed transported and packaged?
A: The bed is shipped in a sturdy wooden export package (one piece per case) with dimensions of 182*108*112cm to ensure safety during transit.
Q6: What accessories are included with the bed?
A: Optional and included accessories usually feature leg supports (1 pair), a cushion set, a stainless steel filth basin, and an IV pole.
