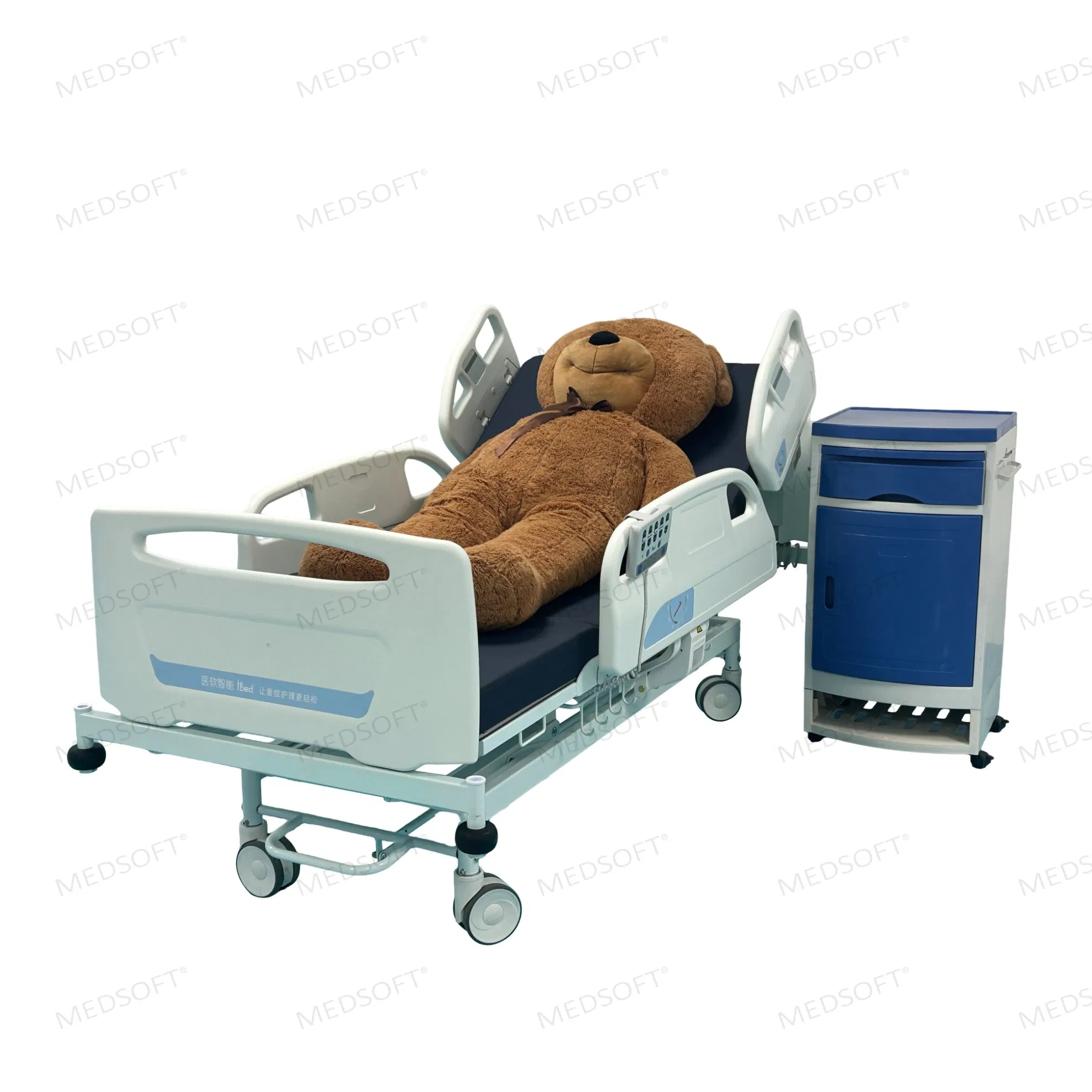

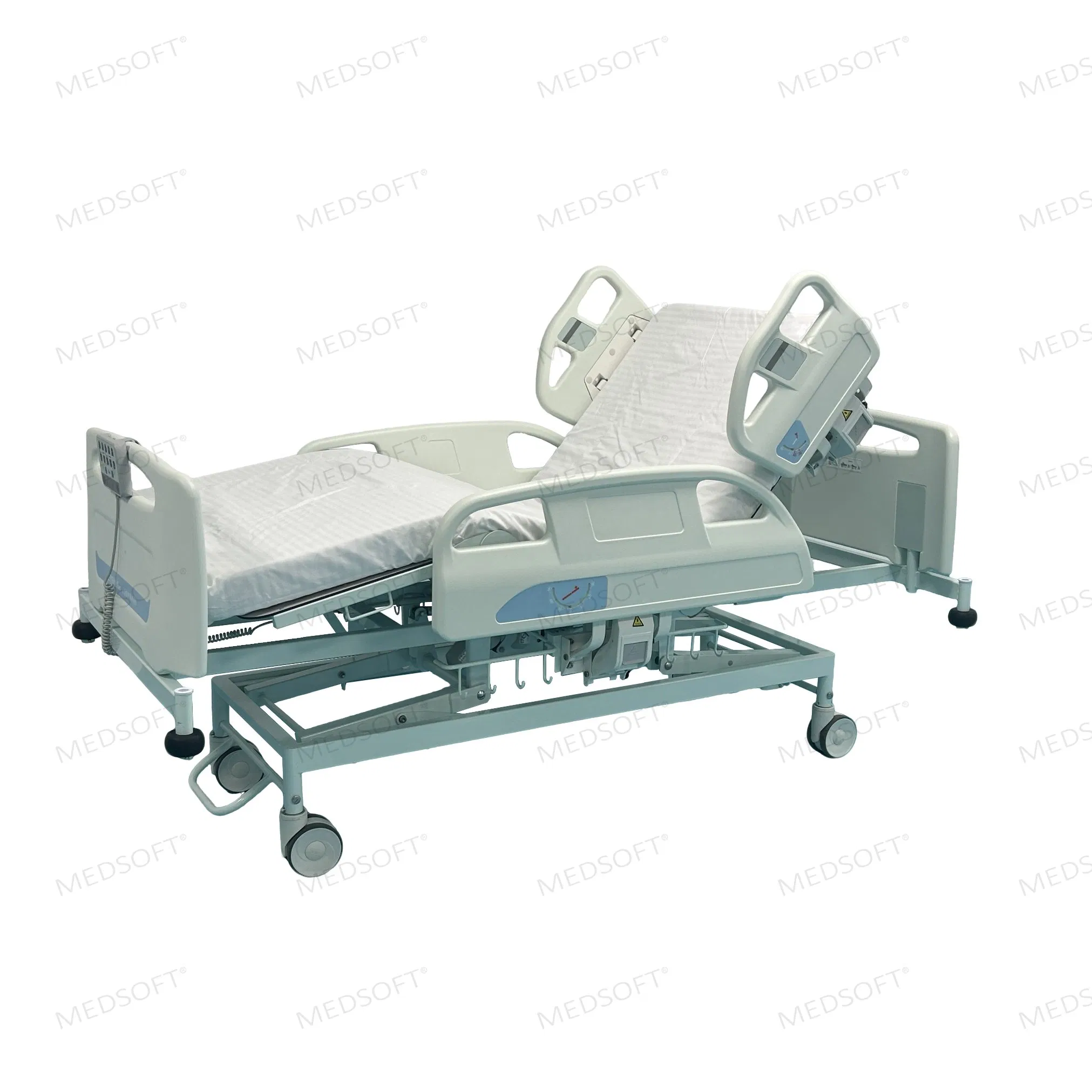

| Model NO. | iBed 1A | Numbers of Function | Five-function |
| Folded | Folded | Using Ambient | Hospital |
| Certification | CE, ISO13485, ISO140001, ISO45001, ISO9001 | Condition | New |
| Actuators | Linak Actuators | Control Panel | Central Control Panel |
| Angle Indicators | Backrest/ Overall | Accessories | Mattress, IV Hole, Drainage Bag |
| Specification | 2200*995*50mm | Production Capacity | 12000 Units/Year |

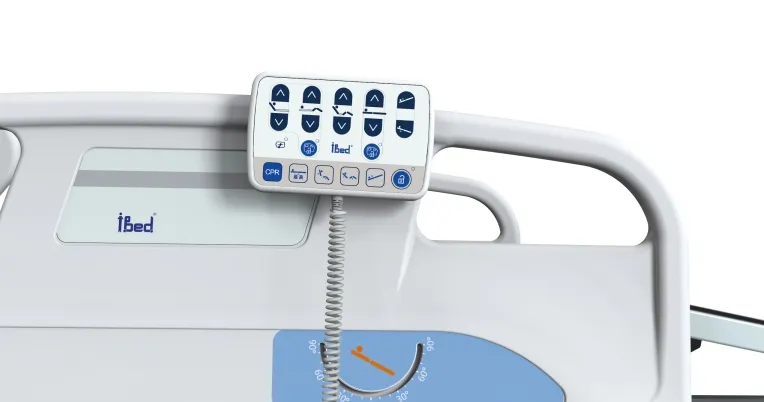

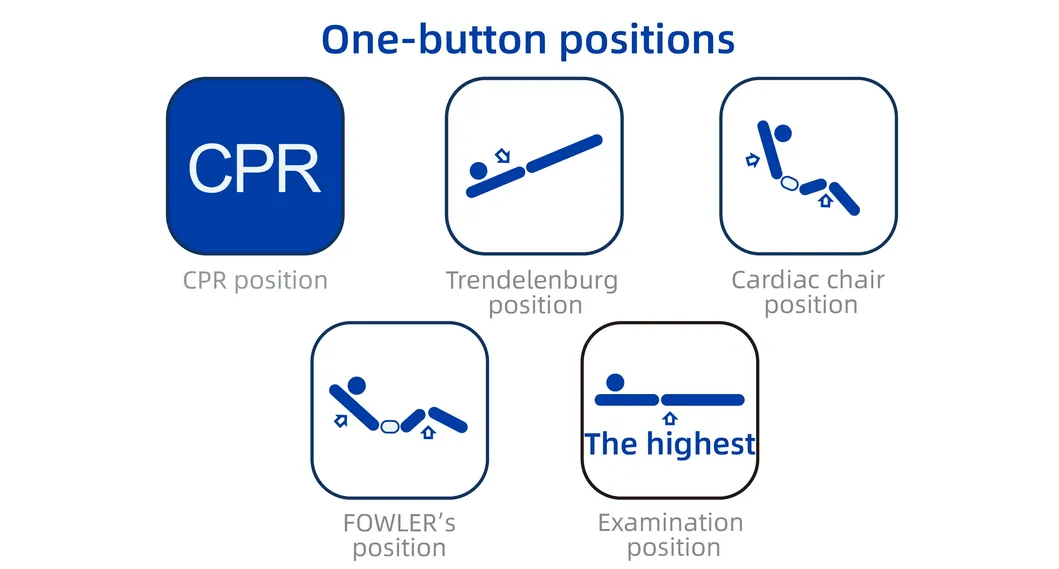

Caregiver Control Panel: Multi-function controller for critical one-button positions, side guardrail lock, and power supply status display.
Angle Indicators: Integrated for backrest and bed height to assist in VAP combined intervention (raising head 30-45°).

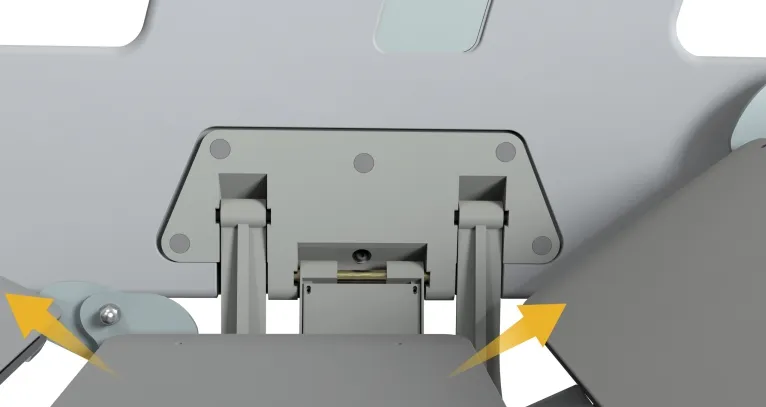

Auto-Rollback: Reduces patient displacement and shear force during body position adjustments.
Manual CPR: Dual-sided levers with damping devices for a slow, safe descent of the backrest, designed for single-hand operation.
Headboard & Footboard: HDPE material, one-step removable to meet emergency ICU requirements.
Four-wheel Linkage: Central locking system allowing easy control of swivel and direction for the entire bed.
| Parameter | Specification |
|---|---|
| Overall Size (L*W*H) | 2200*995*480-850 mm |
| Mattress Platform | 2000*811 mm |
| Safe Working Load | 200 kg |
| Head Up/Down | 0-70° |
| Knee Up/Down | 0-35° |
| Trendelenburg / Anti-Trend | 0-16° |
| Linear Motors | 4 Units (Linak) |
| Castors | 5" Central Locking |
| Drainage Hooks | 14 Units |
