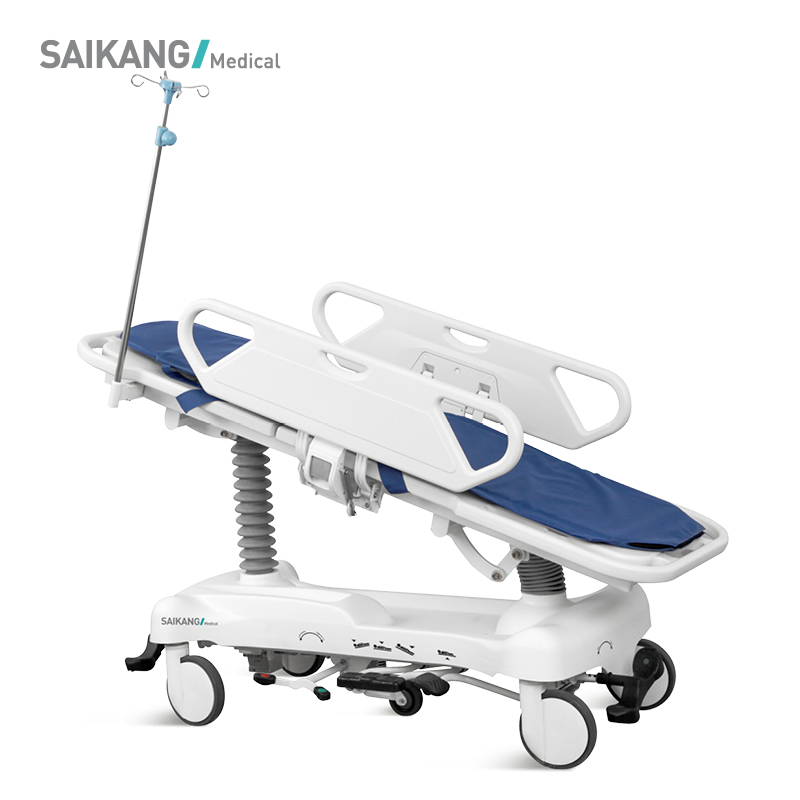

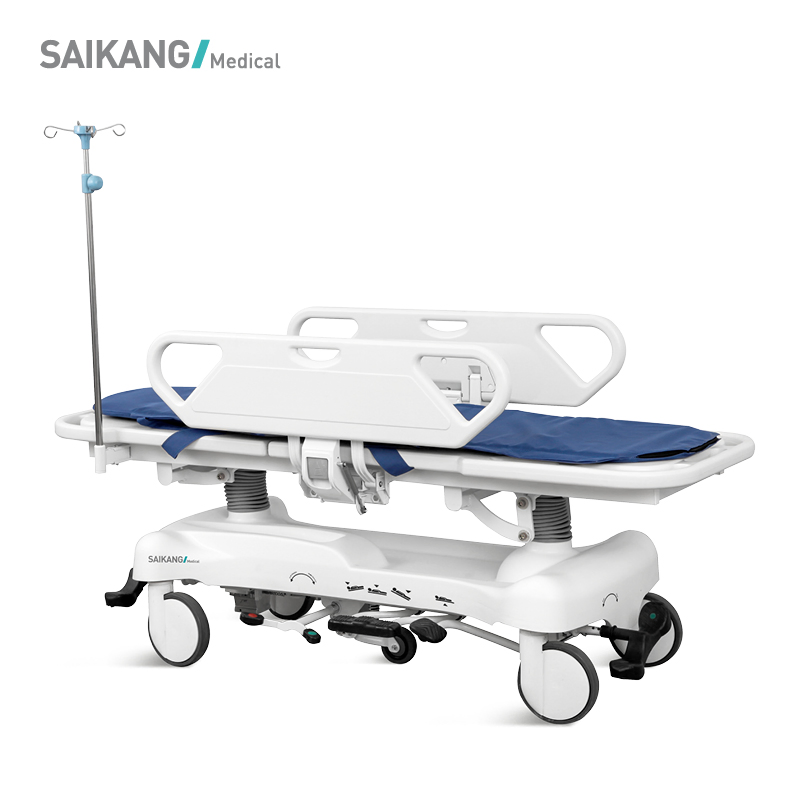

Skb041-2 Multifunction Hydraulic Medical Operating Manual Patient Transportation Trolley
Skb041-2 Multifunction Hydraulic Medical Operating Manual Patient Transportation Trolley
Skb041-2 Multifunction Hydraulic Medical Operating Manual Patient Transportation Trolley
Skb041-2 Multifunction Hydraulic Medical Operating Manual Patient Transportation Trolley
Skb041-2 Multifunction Hydraulic Medical Operating Manual Patient Transportation Trolley
1 / 5
Skb041-2 Multifunction Hydraulic Medical Operating Manual Patient Transportation Trolley
Skb041-2 Multifunction Hydraulic Medical Operating Manual Patient Transportation Trolley
Skb041-2 Multifunction Hydraulic Medical Operating Manual Patient Transportation Trolley
Skb041-2 Multifunction Hydraulic Medical Operating Manual Patient Transportation Trolley
Skb041-2 Multifunction Hydraulic Medical Operating Manual Patient Transportation Trolley

Skb041-2 Multifunction Hydraulic Medical Operating Manual Patient Transportation Trolley

Customization: Available
Material: Stainless Steel
Wheel Type: Swivel Casters
Send Inquiry

Product Description

Basic Info.
Model NO.
SKB041-2
Type
Treatment Cart
Layer
1 Layer
Feature
Easy Cleaning
Color
All Kinds of Colour
Customized
Available
Condition
New
Name
Patient Transport Trolley with Hydraulic Pumps
Certifications
CE/FDA/ISO
OEM
Available
Warranty
2 Years
HS Code
94029000
Capacity
30000PCS/Year
Specification
1900*640*630-930mm
Product Description

Skb041-2 Multifunction Hydraulic Medical Operating Manual Patient Transportation Trolley

Multifunction Hydraulic Medical Trolley
Important Quality Control
  • Baosteel from Fortune Global 500
  • Panasonic Robotic ensure 360° full smooth welding
  • Environmental plastic can be sterilized in 100°C, tensile upto 30MPa
  • 11 Process epoxy painting, ASTM testing anti-bacterial, paint thickness 0.12mm
  • Break spring qualified after 10,000 times uninterrupted break

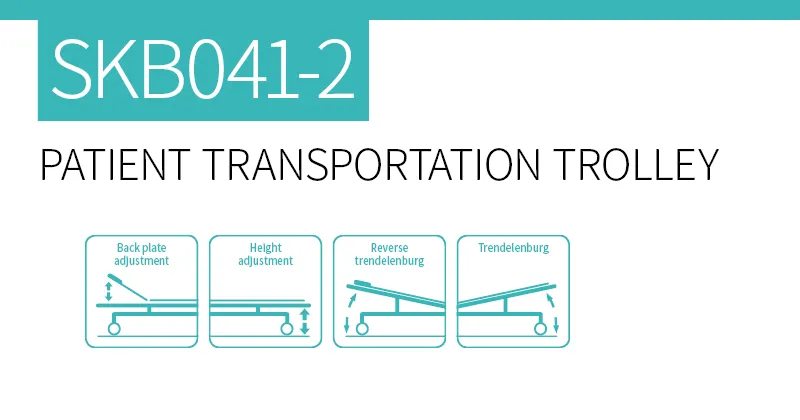

Functions
  • 4 functions: backrest by qualified airspring
  • Height adjustment, trendelenburg and revised trendelenburg through two USA hydraulic pumps
  • Adjustable Height: 630-930mm
  • Length: 1900mm | Width: 640mm
Accessories Details
  • Full SS IV pole, bearing 15kg
  • X-ray translucent platform made of ABS material
  • Eight-inch diameter double side casters, simultaneously lockable
  • Direction wheel for easy one-person operation
  • TPR tire (no wear after 30KM), anti-winding hard shell
  • Pass Dynamic test: 120kg bearing run 30KM and pass obstacles 500 times
Technical Parameters
Parameter Category/Specification
Over length1900mm
Over width640mm
Height adjustment630-930mm
Back rest upward0-75°
Reversed trendelenburg0-15°
Trendelenburg0-15°
Weight capacity220kg
Castor diameter200mm
Adjustable I.V. pole1pc
Patient safety straps2 pcs
Oxygen cylinder holder1 pc
Mattress1 pc
Trolley Detail 1

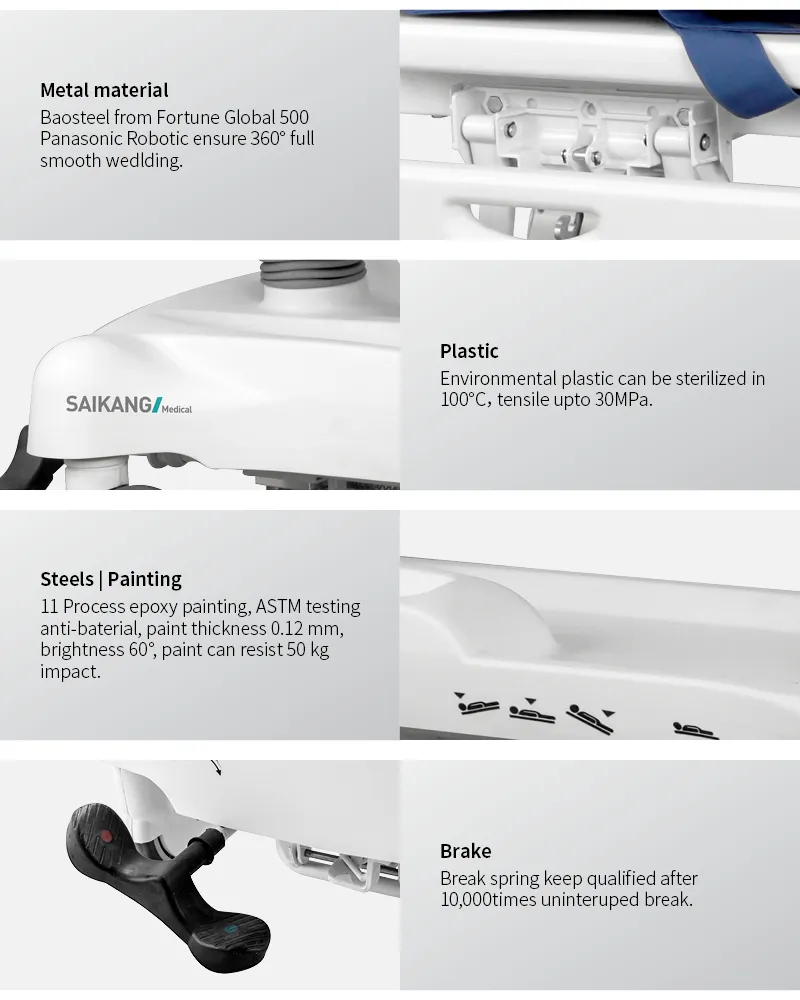

Trolley Detail 2

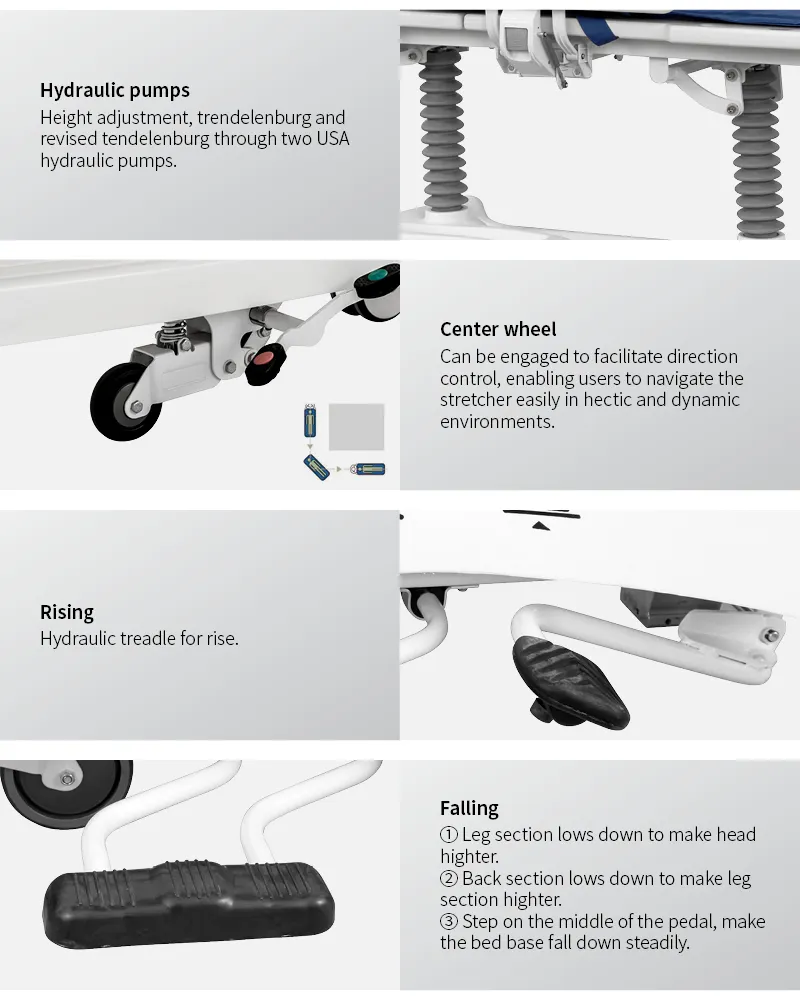

Trolley Detail 3

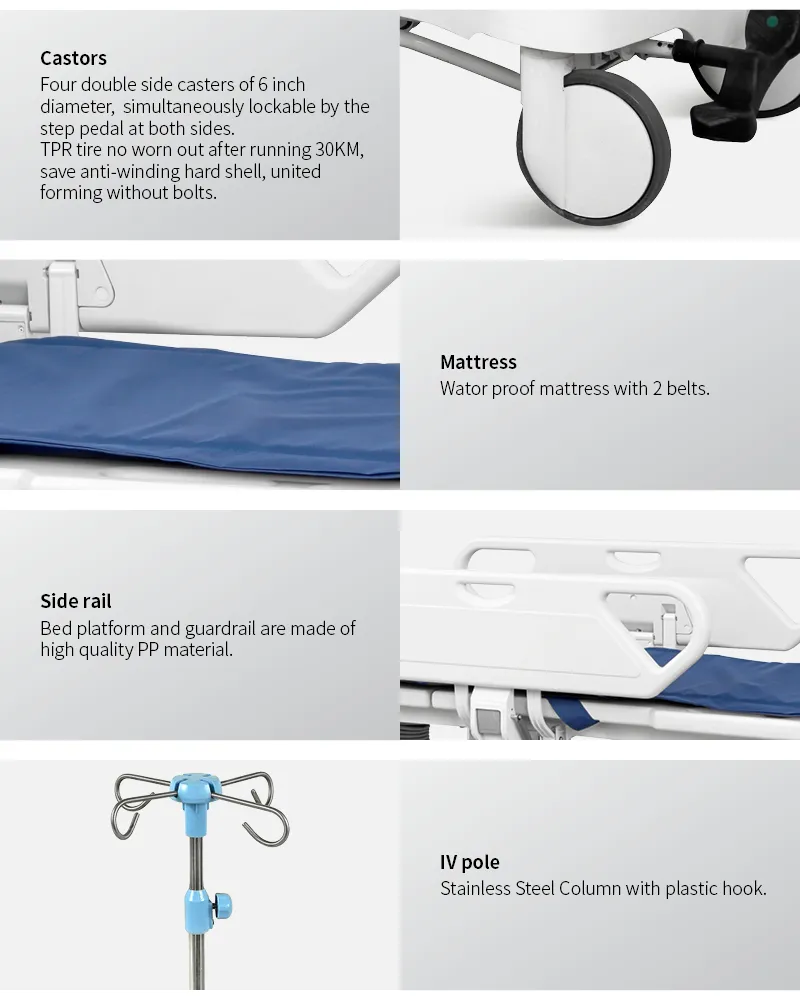

Trolley Detail 4

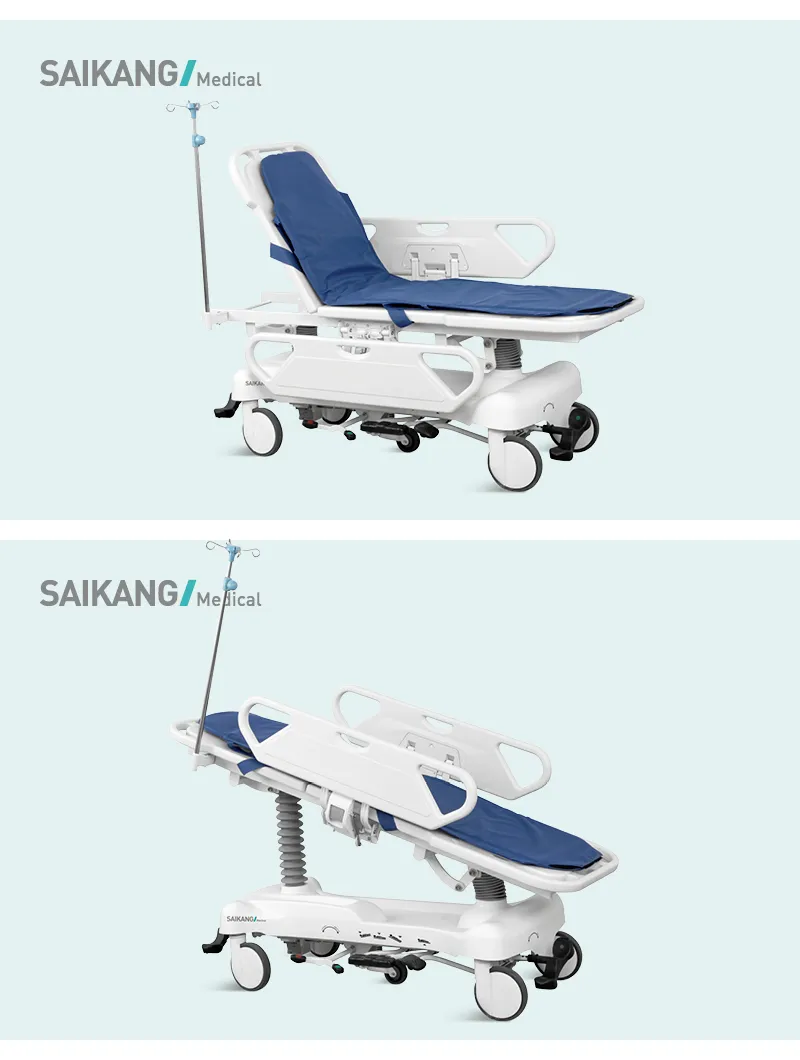

Trolley Detail 5
Trolley Detail 6
Trolley Detail 7
Trolley Detail 8
Frequently Asked Questions
Q1: What are the main adjustments possible with the SKB041-2 trolley?
A: The trolley offers 4 main functions: backrest adjustment via airspring, height adjustment (630-930mm), and both trendelenburg and reversed trendelenburg positions (0-15°) powered by two USA hydraulic pumps.
Q2: What is the maximum weight capacity of this transportation trolley?
A: The SKB041-2 is designed with a weight capacity of up to 220kg, having passed rigorous dynamic tests including obstacle clearance.
Q3: Is the platform suitable for medical imaging?
A: Yes, the trolley features an X-ray translucent platform made entirely from ABS material for diagnostic convenience.
Q4: How does the braking and steering system function?
A: It is equipped with four 8-inch double-side casters that can be simultaneously locked using step pedals on both sides. It also includes a direction wheel to help a single person push the trolley in a straight line easily.
Q5: What certifications and quality standards does this product meet?
A: The product is CE, FDA, and ISO certified. It utilizes high-quality Baosteel, Panasonic robotic welding, and 11-process epoxy painting to ensure anti-bacterial properties and durability.
Q6: What accessories are included as standard?
A: Standard accessories include a full stainless steel adjustable I.V. pole, two patient safety straps, an oxygen cylinder holder, and a mattress.
