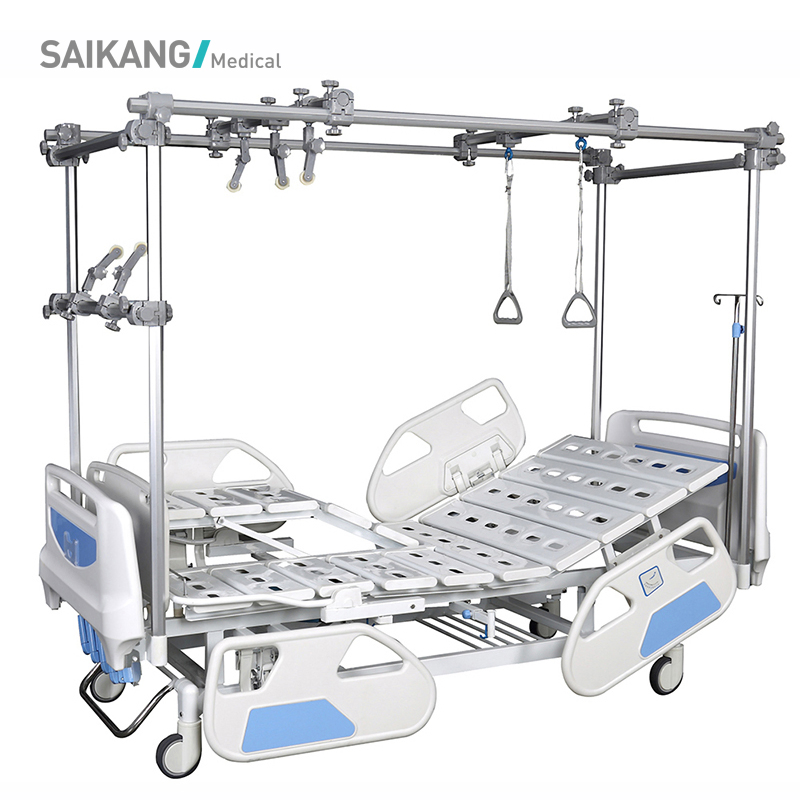

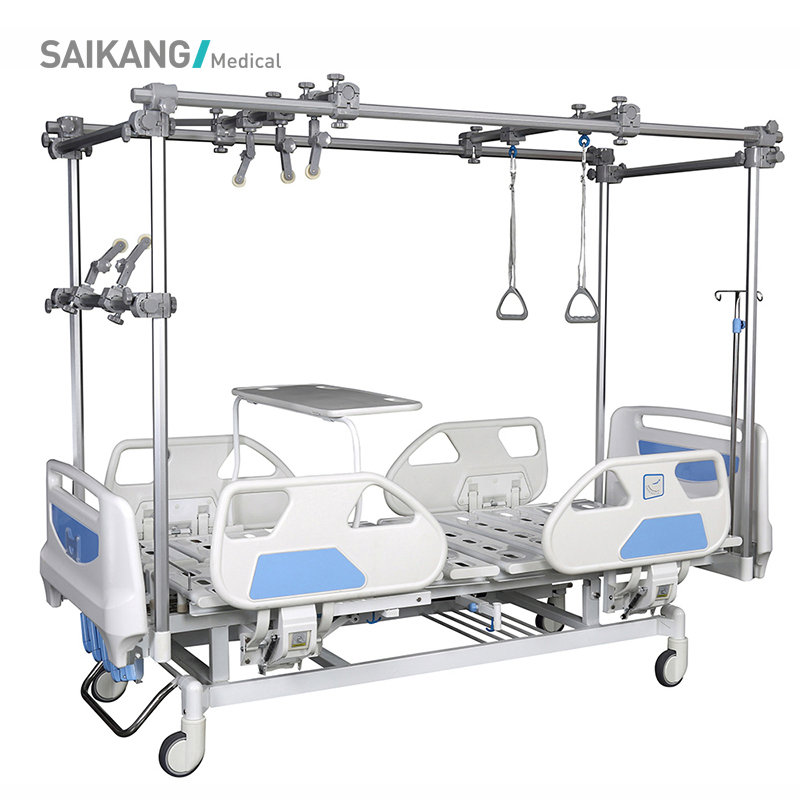

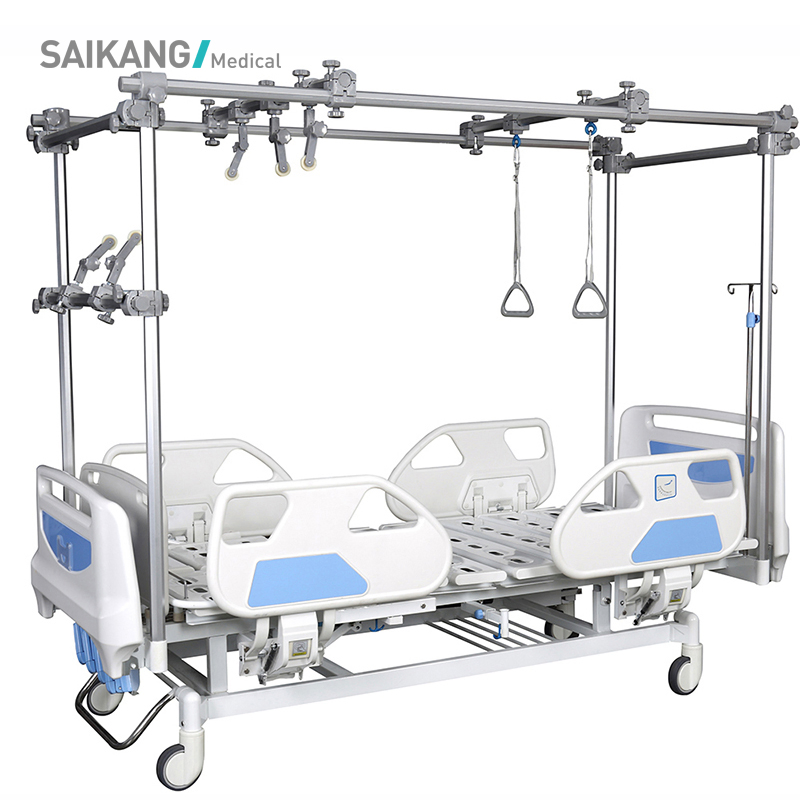

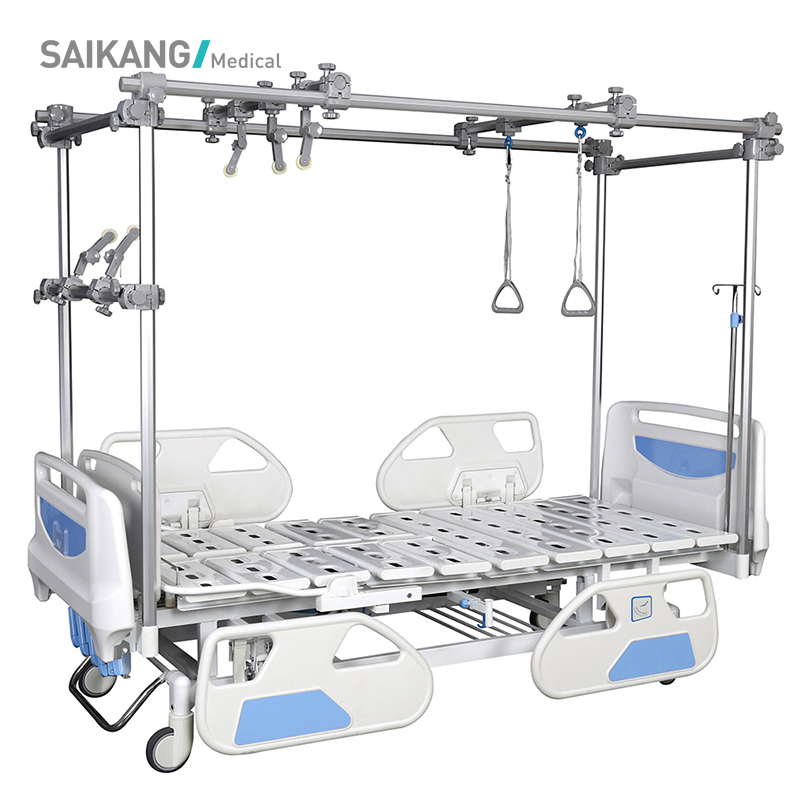

GB4e Movable Multifunction Manual Orthopedic Lumbar Traction Bed with Wheels

1 / 5

GB4e Movable Multifunction Manual Orthopedic Lumbar Traction Bed with Wheels

Customization:	Available
Material:	Metal
Type:	Orthopedic Bed

Send Inquiry

Product Description

Basic Info.

Model NO.

GB4e

Folded

Unfolded

Using Ambient

Hospital

Numbers of Function

Three-function

Certification

CE, FDA, ISO13485

Condition

New

Name

Hospital Manual Orthopaedics Traction Bed

Warranty

2 Years

Factory Type

Over 13 Years Manufacturer

Spare Parts

1% Free

Manual Cranks

4PCS

Central Locking Pedal

1PC

Specification

2270*1060*500mm

HS Code

94029000

Production Capacity

30000PCS/Year

Product Description

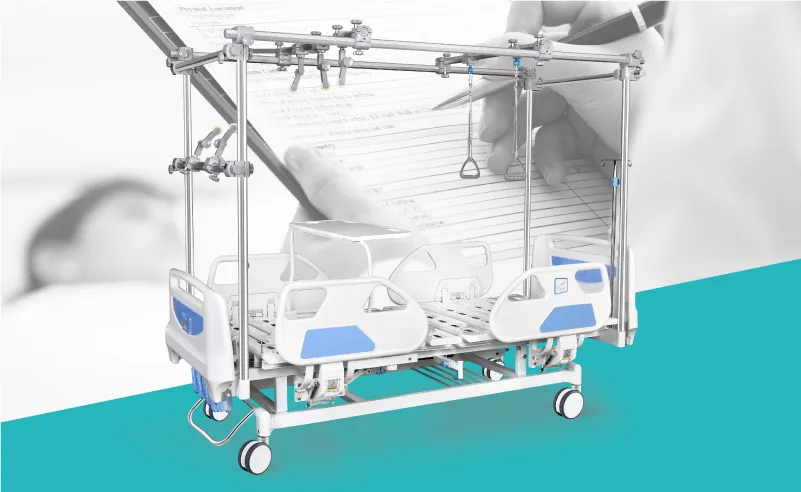

Wholesale Movable Multifunction Manual Orthopedic Lumbar Traction Hospital Bed with Wheels

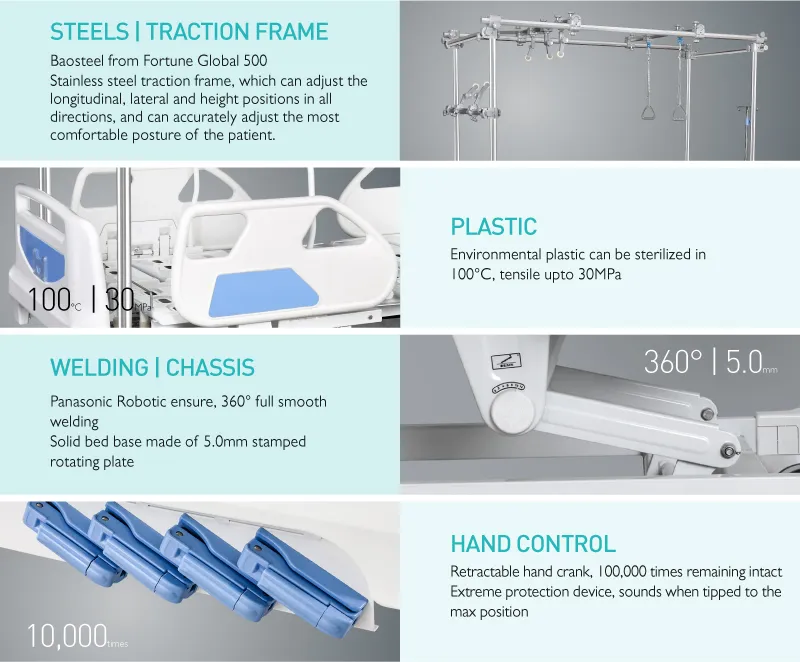

Important Quality Control

Baosteel from Fortune Global 500
Environmental plastic can be sterilized in 100°C, tensile up to 30MPa

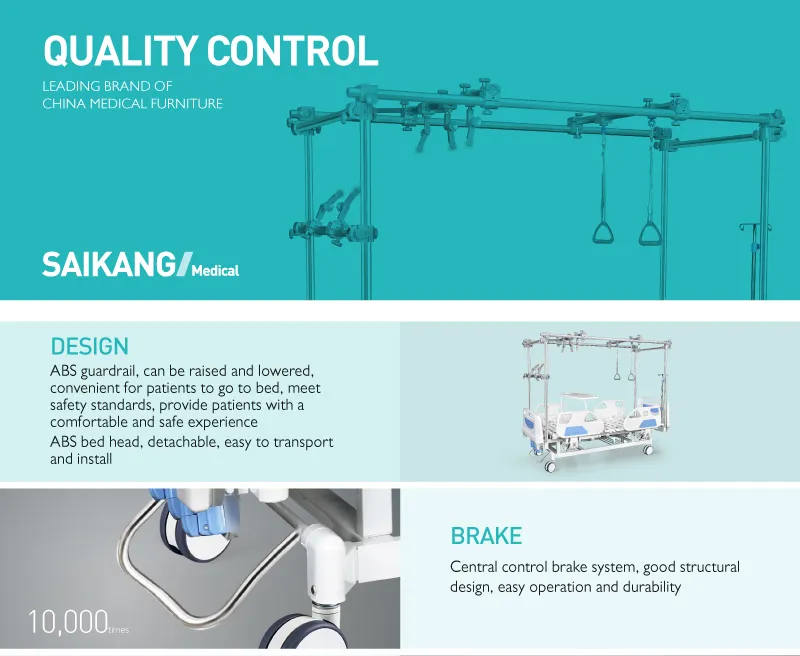

Central control brake system, good structural design, easy operation and durability
Panasonic Robotic ensure 360° full smooth welding

Functions

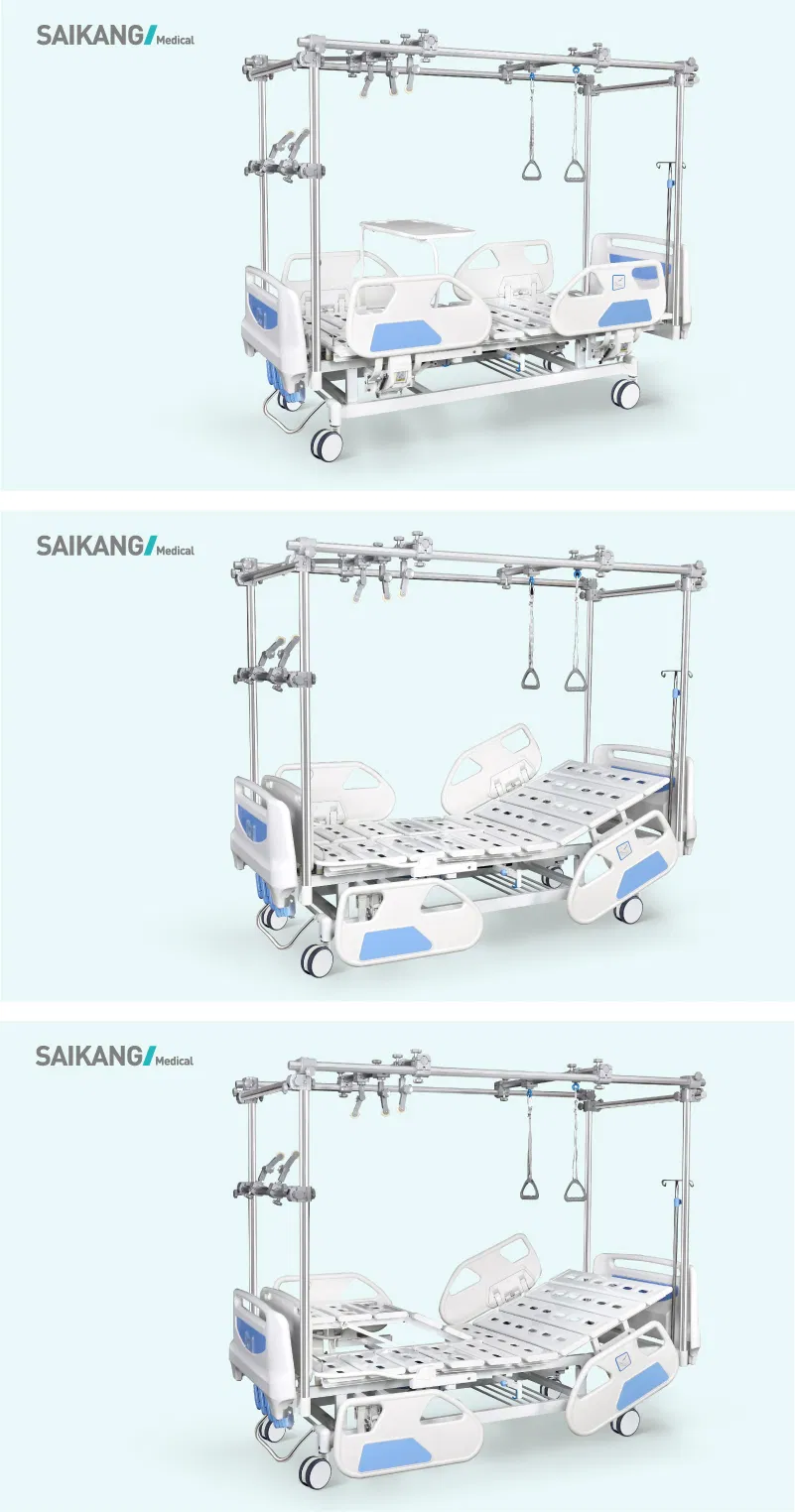

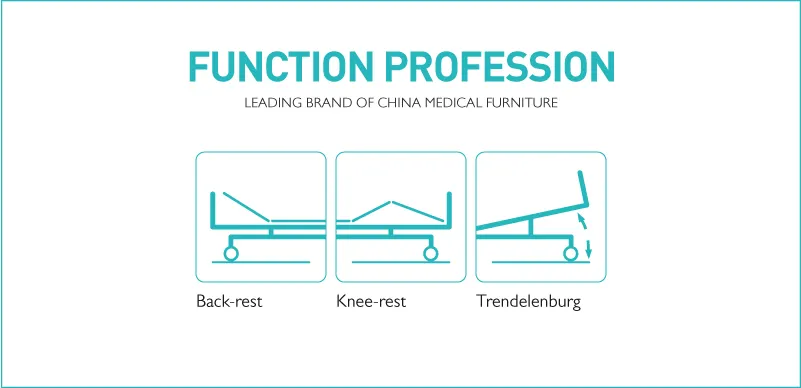

3 Functions: back lift, leg lift (divided into right and left leg), Trendelenburg
Stainless steel traction frame: adjustable longitudinal, lateral, and height positions in all directions

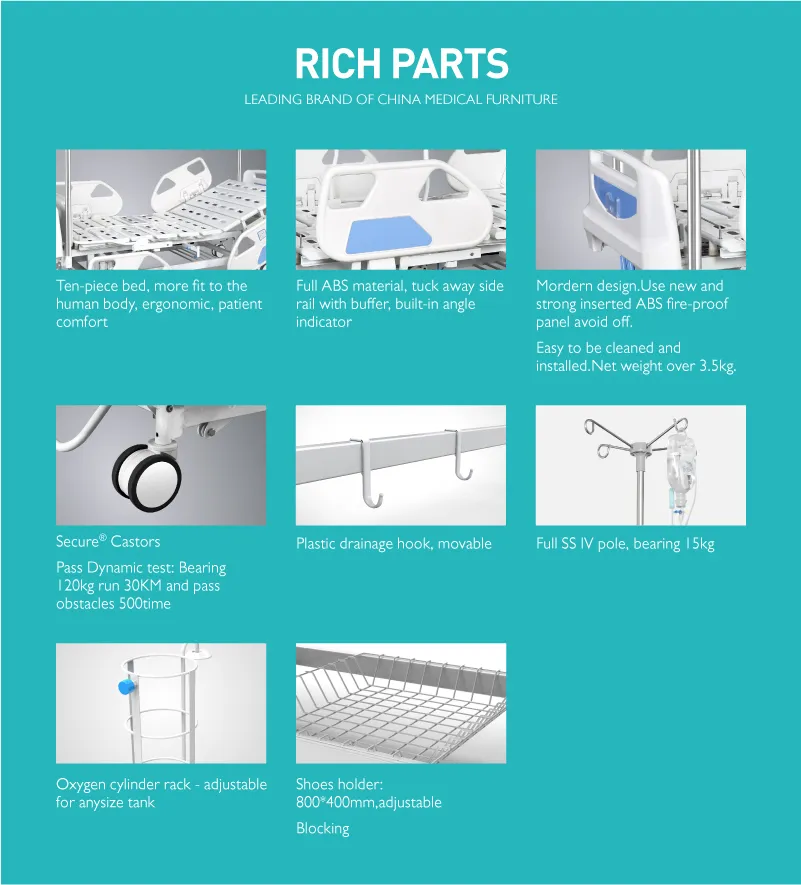

Accessories Details

Ten-piece bed design, ergonomic for superior patient comfort
5-inch single-sided casters for smooth operation
Movable plastic drainage hook
Full SS IV pole, bearing 5kg

Technical Configuration

External LWH	22701060500mm
Mattress Platform	1925*900mm
Back-rest Adjustment	0-75°(±10°)
Knee-rest Adjustment	0-35°(±10°)
Reverse Trendelenburg	0-6°(±2°)
Trendelenburg	0-6°(±2°)

Accessories List

Manual Cranks	4pcs
ABS Bed Ends with Safe Lock	1set
5" Single Side Castors, Central Locking	4pcs
Central Locking Pedal	1pc
IV Pole / IV Pole Prevision	1set / 4pcs
Drainage Hook	2pcs
Stainless Steel Balkan Frame	1set
Folding Dinning Table	1pc

Frequently Asked Questions

Q1: What are the primary adjustment functions of the GB4e orthopedic bed? A: The bed features three manual functions including back-rest adjustment (0-75°), knee-rest adjustment (0-35°), and Trendelenburg/Reverse Trendelenburg positioning.

Q2: How adjustable is the Balkan traction frame? A: The stainless steel traction frame is highly versatile, allowing for longitudinal, lateral, and height adjustments in all directions to ensure patient comfort.

Q3: What certifications does this hospital bed carry? A: This model is fully certified with CE, FDA, and ISO13485 standards, ensuring it meets international quality and safety requirements.

Q4: What is the warranty and spare parts policy? A: We provide a 2-year warranty for the bed and include 1% of the total order value as free spare parts for maintenance.

Q5: Is the bed easy to move and secure? A: Yes, it is equipped with 5-inch single-sided casters and a central control locking pedal system for easy mobility and stable positioning.

Q6: What materials are used in the construction? A: The bed is constructed using high-quality Baosteel steel and environmental plastics that can withstand 100°C sterilization, with robotic 360° smooth welding.
