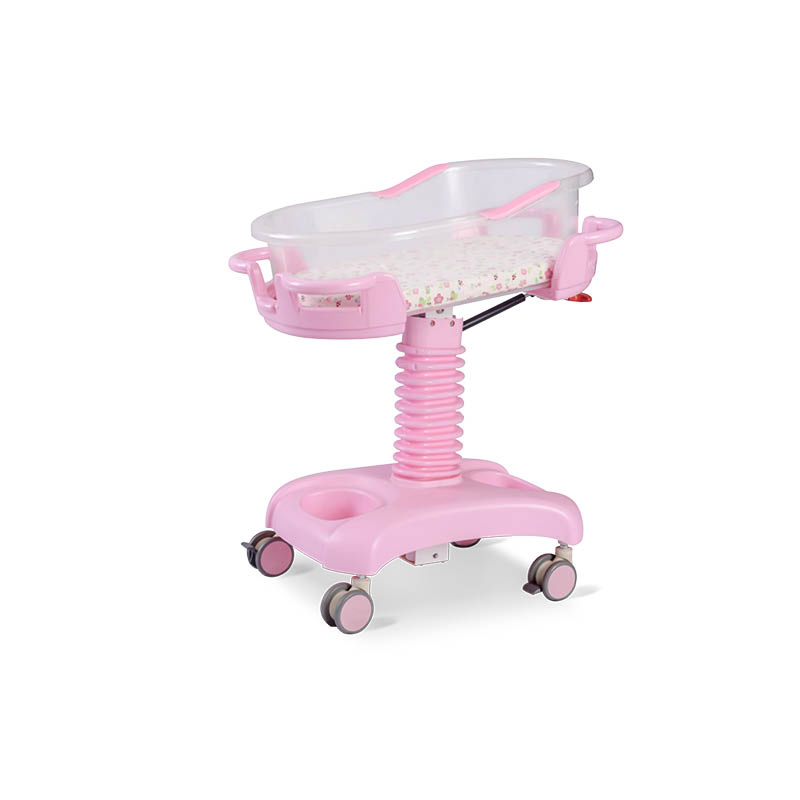

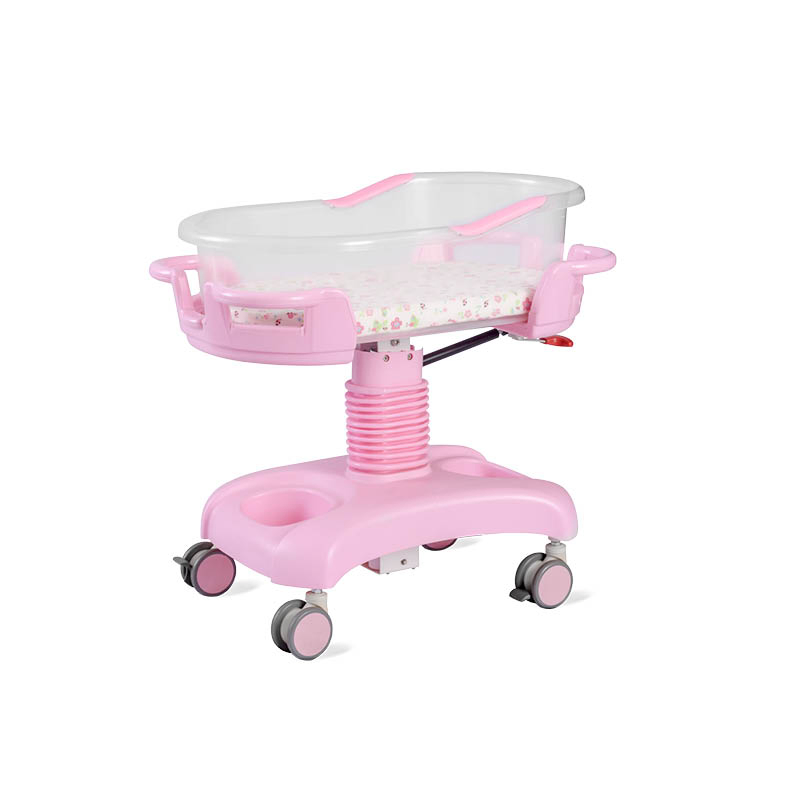

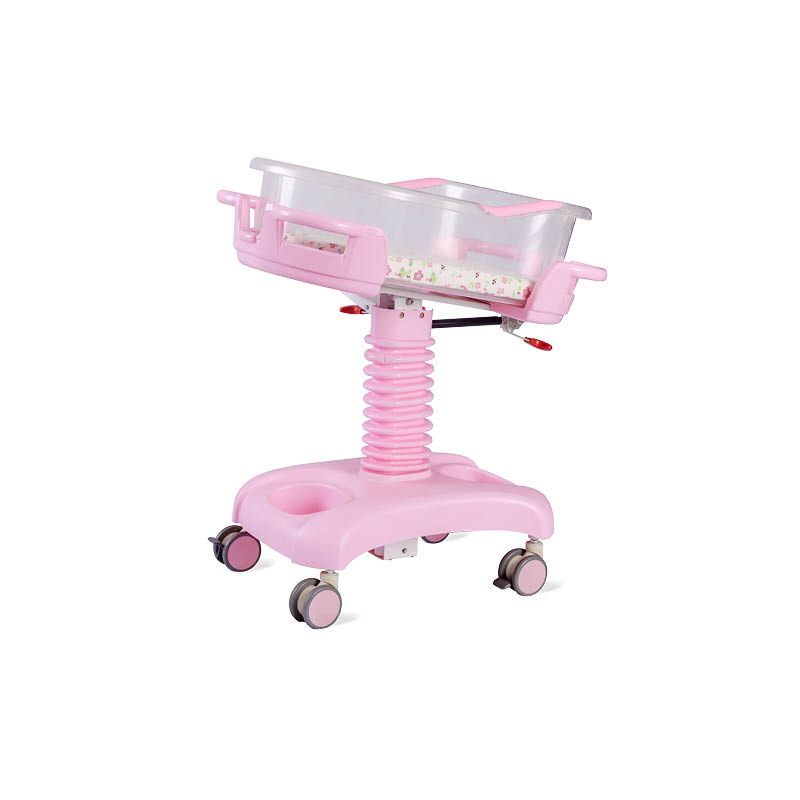

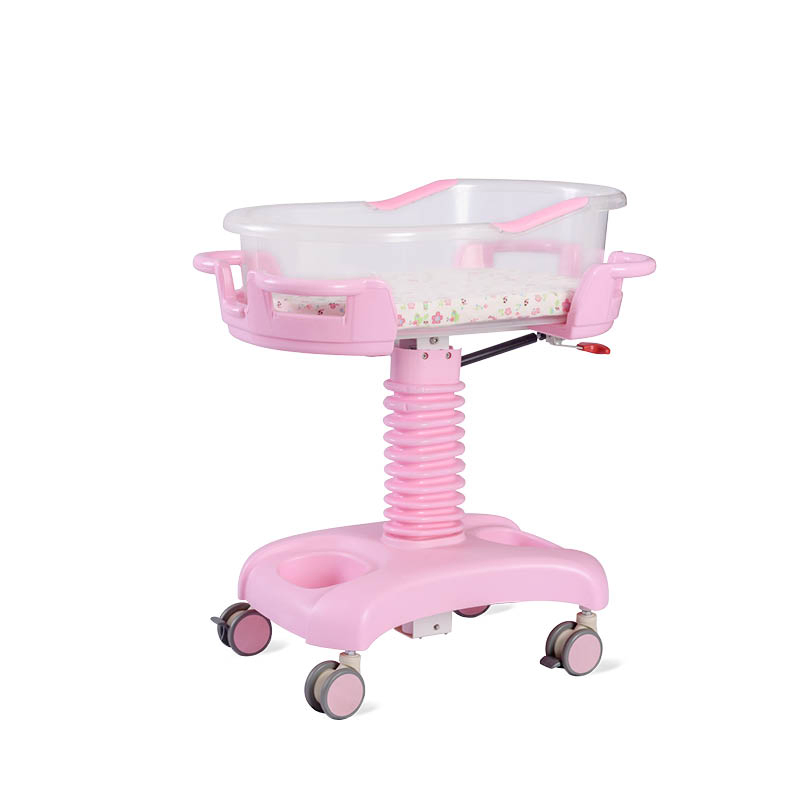

NWX01-1 Hydraulic Manual Newborn Intensive Care Baby Pediatric Bed
A professional-grade solution designed for hospitals, featuring hydraulic height adjustment and multi-functional positioning to ensure the highest level of care for newborns.
📋 Basic Specifications
| Model NO. |
NWX01-1 |
| Using Ambient |
Hospital / Intensive Care Units |
| Functions |
Three-function (Height, Trendelenburg, Reversed Trendelenburg) |
| Certification |
CE, FDA, ISO13485 |
| Bed Size |
875 * 525 * (650-900) mm |
| Load Capacity |
≥30kg |
| Warranty |
2 Years |
⚙ Technical Parameters
| Trendelenburg Range |
0-12° (±5°) |
| Reversed Trendelenburg |
0-12° (±5°) |
| Height Adjustment |
650 - 900 mm |
| Mattress Thickness |
2cm (optional) |
| Packing Size |
910 * 550 * 850 mm (One piece per carton) |
✨ Product Key Features
✔

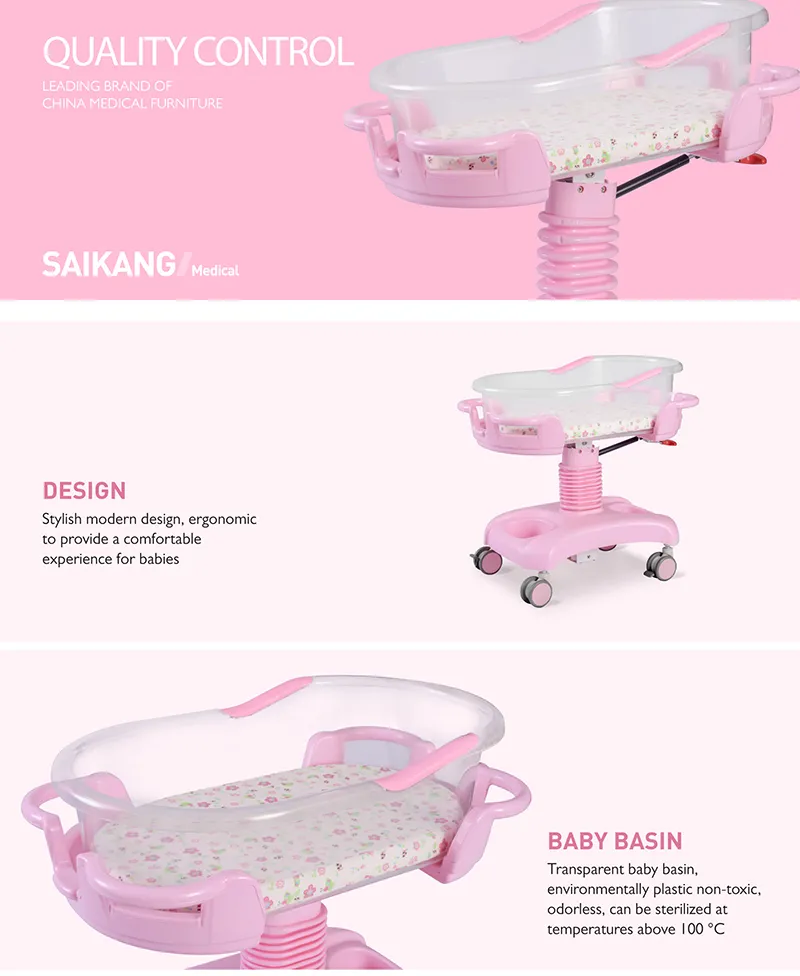

Modern Ergonomic Design: Stylish and modern construction tailored to provide a comfortable and safe experience for babies.
✔
Premium Materials: Transparent baby basin made of non-toxic, odorless environmentally friendly plastic; can be sterilized at temperatures above 100°C.
✔

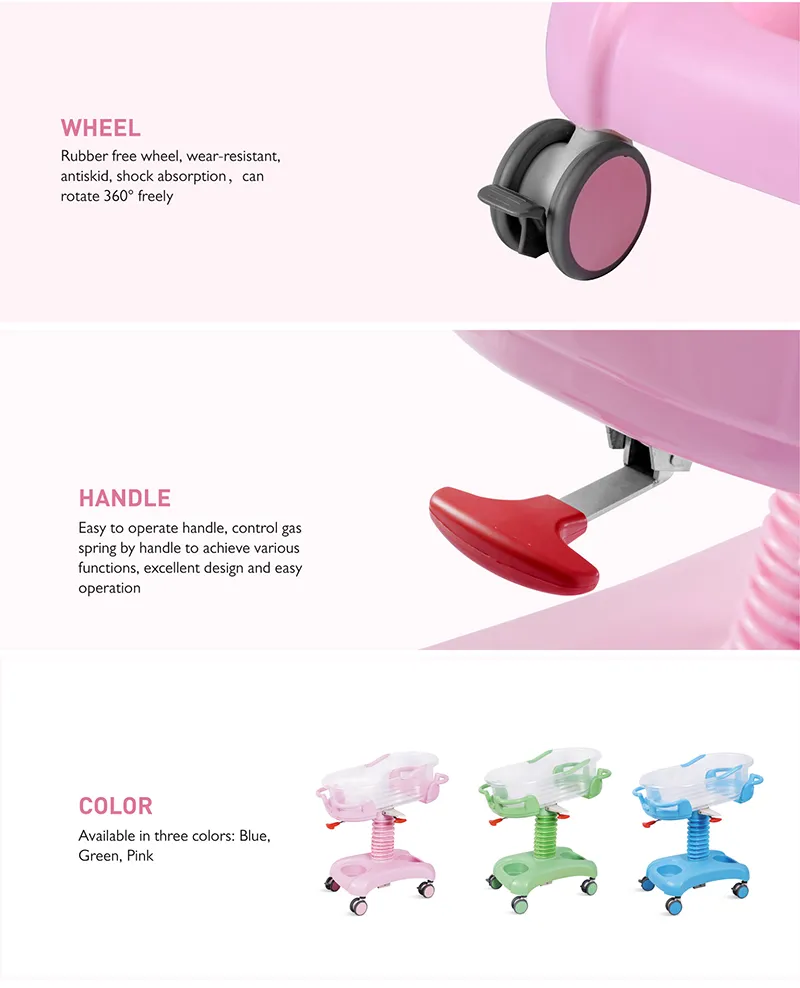

Advanced Mobility: Equipped with rubber-free wheels that are wear-resistant, anti-skid, and shock-absorbing with 360° free rotation.
✔
Hydraulic Control: Easy-to-operate handle controlling a gas spring for precise height and tilt adjustments.
✔
Color Options: Available in three professional colors: Blue, Green, and Pink.
✔
Storage Efficiency: Integrated baskets on each side for convenient placement of baby essentials and medical supplies.
Ⓢ Compliance & Standards
This pediatric equipment is designed to meet rigorous global healthcare standards. It has successfully passed international certifications including:
- ISO-9001 / 13485 / 14001 Quality Management Systems
- European CE and US FDA Registration
- Compliance with 93/42/EEC and IEC 60601 safety standards
Frequently Asked Questions
Q: What are the main adjustment functions of this baby bed?
A: The bed features three main functions: height adjustment (650-900mm), Trendelenburg positioning (0-12°), and Reversed Trendelenburg positioning (0-12°), all controlled via a hydraulic gas spring.
Q: Is the baby basin material safe for medical use?
A: Yes, the basin is made from non-toxic, odorless, environmentally friendly plastic that can withstand sterilization at temperatures over 100°C.
Q: What is the maximum load capacity for the bed?
A: The bed is designed to safely support a load capacity of 30kg or more, suitable for newborns and pediatric patients.
Q: Does the bed come with a mattress?
A: A 2cm custom mattress made of soft, antibacterial, and easy-to-clean material is available as an option to provide a comfortable experience.
Q: Are the wheels lockable for safety?
A: Yes, the bed is equipped with high-quality, wear-resistant, and shock-absorbing wheels that can rotate 360° for mobility and include a stable braking system for safety.
